3530 Led wall washer light R/G/B/W/RGB/RGBW DC24V

Features:

Standard length: 970mm(40inch), customized size

Input Voltage: 24V DC

Watt: 18W 24W 36W

Led Brand: Epistar, Philips

IP Degree: IP67

Color: 3000K 4000K 5000K 6000K RGB/RGBW

Warranty: 5 years

Inquire

Description


Super bright LED adopted. LED has the following features: low heat, long service life, high luminous efficiency, pure light color, and stable quality etc.
Multiple colour effect. Flashing, fading, static colors, gradient, chasing, flowing water and changing colors etc.
Customizable. The chips, light body color, and DMX512 external control mode can be customized.
Ultra-narrow beam angle. 15 °, 30 °, 45 ° and 20*60 ° are optional.
Wall washer distance: 5 meters.
Adjustable bracket. The bracket can be adjusted to 0-180 degrees.
Waterproof. IP65.
Durable housing. 6063 aluminum adopted, scratch and fade resistant. Excellent appearance.
Tempered Glass. Safe and extremely high light transmittance.
Eco-Friendly. No lead or mercury.
No Hazardous Emissions. No UV or IR Radiation.

Specifications:

Model No.
Size(mm)
Color
Beam Angle
Power
LED Chip LED Qty
Input Voltage
Material
 IP
NB-WL02-18W
L970*W35*H30

3000K/4000K/5000K

/6000K/RGB

15/30/45/20*60
18w
3530 18PCS
24V DC
AL6063+stalinite
IP67
NB-WL02-24W
L970*W35*H30

3000K/4000K/5000K

/6000K/RGB

15/30/45/20*60 24w
3530 24PCS
24V DC
AL6063+Stalinite
IP67
NB-WL02-36W
L970*W35*H30

3000K/4000K/5000K

/6000K/RGB

15/30/45/20*60 36w
3530 36PCS
24V DC AL6063+Stalinite
IP67


Product size(mm):

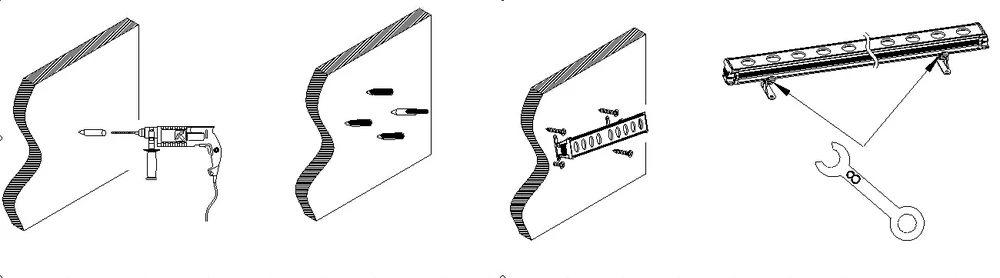

Installation Drawing:


1. make sure the installation position

first and drilling hole

2. put expansion of plastic plug into the  hole

3. Install the screwsinto expansion of plastic plug to fix the light on the wall

4. Using  8mm spanner to Adjust the projectionangle and fix the light





Wiring Diagram:




Application:

Architectural lighting for canopies, corridors, archways, windows.
Downlighting or uplighting for wall wash applications.
Landscape lighting.
Excellent for hospitality applications (bars, restaurants, clubs, hotels).
Road and bridge lighting.
Museum and art gallery lighting.
Sculpture and statue illumination.
Decorative lighting for holidays, tradeshows, exhibitions.
